Switch Model Power Supply

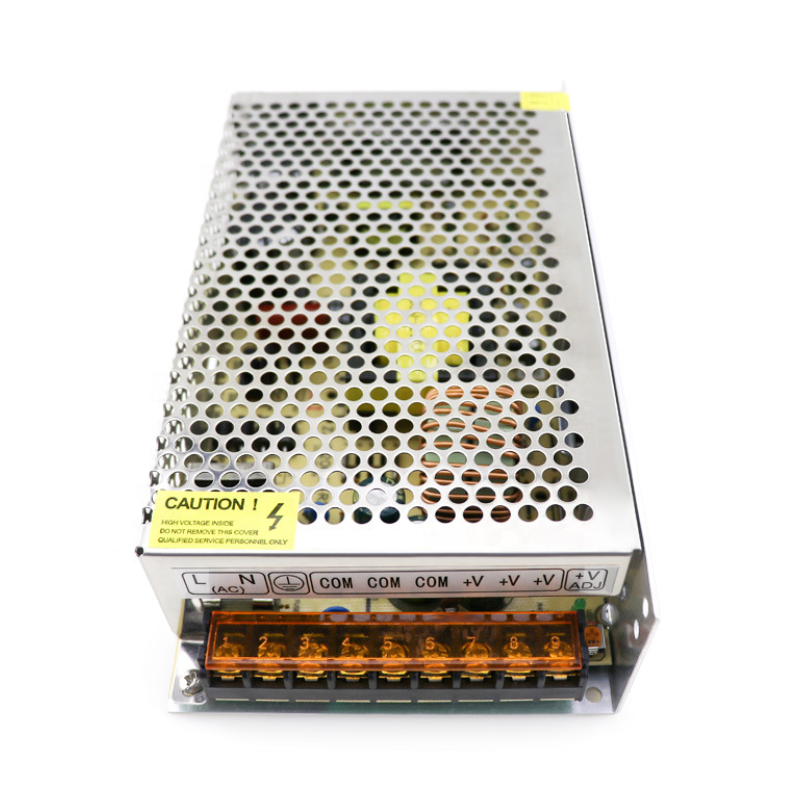

Sieno Switchgears 12V 25W S-25-12 AC DC Switching Power Supply

Product description: Sieno Switchgears 12V 25W S-25-12 AC DC Switching Power Supply Feature： 1.International AC input range 2.High efficiency,low working temperature 3.Short circuit,overload,over-current prote
INQUIRY

Feature：

1.International AC input range

2.High efficiency,low working temperature

3.Short circuit,overload,over-current protection

4.100% fully load burn-in test

5.Built-in EMI filter, low ripple noise

6.Low cost, high reliability

7.OEM and ODM is welcome

Model	S-25-12	S-25-24
AC input voltage range	110-264VAC
Input current	0.5A/115V 0.25A/230V
AC impulse current	Cold-start current 13A/115V 26A/230V
DC output voltage	12V	24V
Output voltage error	±1%	±1%
DC output power	24W	24W
Efficiency	85%	85%
Rated output current	2A	1A
Wave and noise	100mVp-p	100mVp-p
Inlet stability	±0.5%	±0.5%
Load stability	±0.5%	±0.5%
Leakage current	<0.5mA/240VAC
Overload protection	105% - 150% rated power, automaticly recovery
Vibration	10500Hz,2G 10min./1cycle,Period for 60min,Each axes
Cooling method	Natural cooling air convection
Working temperature and humidity	- 20 ° ~ 60 ° c / 20% ~ 90% RH (no frost)
Store temperature and humidity	- 40 ° ~ 85 ° c / 10% ~ 95% RH (no frost)
Safety standards	CE(EMC+LVD),Rohs
Dimension	85x58x33mm
Weight	0.2kgs
