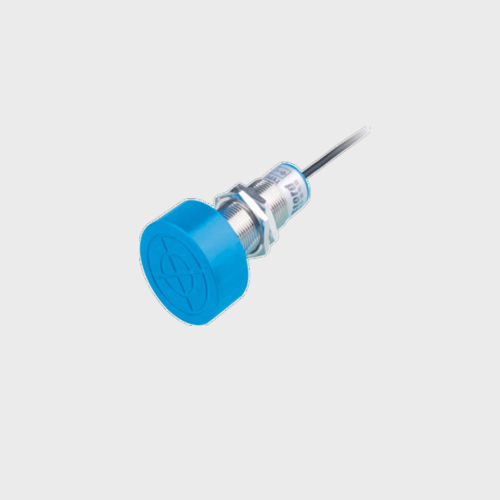

Sieno LM20 Inductive Proximity Sensor Switch

  • Sieno LM20 Inductive Proximity Sensor Switch
  • Product description: Sieno LM20 Inductive Proximity Sensor Switch
  • INQUIRY

Sieno LM20 Inductive Proximity Sensor Switch


Compact volume
high precision of repeated location
Diversified exterior structures
Good performance of anti-interference.
Many output forms
High on-off frequency.
Wide voltage range
Dust proof,vibration proof,water proof and oil proof.
With short-circuit protection and inverted connecting protection.
Long service life




Model Explanation:

Model explanation of proximity switch


1. Switch category(LM: inductance type; CM: capactitance type;SM:Hall type; AM:safety explosion-proof type; XM: mimic linear type)
2. Outward appearance code(C: Cylinder type; F: Angular column type and planeinstallation type)
3. Operating voltage(30: 6-36VDC; 310: 5-24VDC; 320: 12-60VDC; 20:90-250VAC; 210: 24-250VAC;220: 380VAC; 40: 12-240VDC/24-240AC; 50: Special voltage)
4. Detection distance( 01: 1mm; 05:5mm; 10:10mm)
5. Output method (N: Three-line DC NPN output;P: Three-line DC PNP output;
L: Two-line DC output; AC two-wire output;J: Relay output;NP: NPN+PNP output)
6. Output status(A: NO; B: NC; C: NO+NC; MU: Mimic voltage; MI: Mimic current)
7. Auxi function code(T: With connector; Y: Water proof, oil proof; I: Special requirement;
H: High temp resistance; R: Ring type)

Technical Parameters:



OVERALL DIMENSIONS

DETECTION DISTANCE
Flush DC 10-30V NPN NO
NC
NO+NC
PNP NO
NC
NO+NC
two wire system NO
NC
AC 90-250V SCR Control-lable silicon NO
NC
NO+NC
Relay output
DETECTION DISTANCE 10mm
Non-Flush DC 10-30V NPN NO LM20-3010NA
NC LM20-3010NB
NO+NC LM20-3010NC
PNP NO LM20-3010PA
NC LM20-3010PB
NO+NC LM20-3010PC
two wire system NO LM20-3010LA
NC LM20-3010LB
AC 90-250V SCR Control-lable silicon NO LM20-2010A
NC LM20-2010B
NO+NC
Relay output
Controloutput DC 200mA
SCR/ Relay 300mA/1A
Output voltagc dropDC/AC NPN/PNP<3V,Two wire<3.9V,AC<10V
Consumption current DC<15mA,AC<10mA
Standard detected object 20*20*1(A3 iron)
Repeated precision 0.05
DC/AC 200Hz/25Hz
Working environment temperature -25℃~+70℃
Insulation resistance 50MΩ
Shell material ABS Resin
Protection grade IP67
Altemative model at home and abroad
