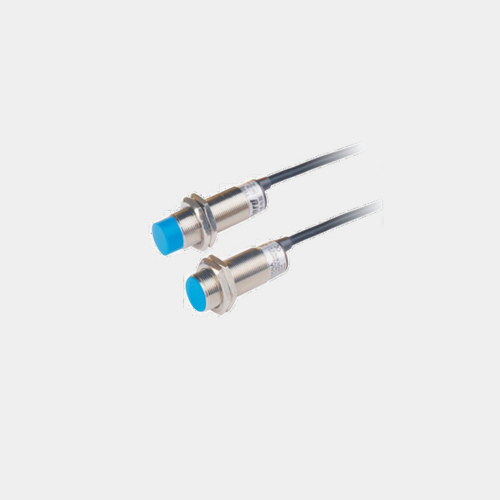

Sieno LM18 Sensor Switches


Compact volume
high precision of repeated location
Diversified exterior structures
Good performance of anti-interference.
Many output forms
High on-off frequency.
Wide voltage range
Dust proof,vibration proof,water proof and oil proof.
With short-circuit protection and inverted connecting protection.
Long service life


Model Explanation:


Model explanation of proximity switch


1. Switch category(LM: inductance type; CM: capactitance type;SM:Hall type; AM:safety explosion-proof type; XM: mimic linear type)
2. Outward appearance code(C: Cylinder type; F: Angular column type and planeinstallation type)
3. Operating voltage(30: 6-36VDC; 310: 5-24VDC; 320: 12-60VDC; 20:90-250VAC; 210: 24-250VAC;220: 380VAC; 40: 12-240VDC/24-240AC; 50: Special voltage)
4. Detection distance( 01: 1mm; 05:5mm; 10:10mm)
5. Output method (N: Three-line DC NPN output;P: Three-line DC PNP output;
L: Two-line DC output; AC two-wire output;J: Relay output;NP: NPN+PNP output)
6. Output status(A: NO; B: NC; C: NO+NC; MU: Mimic voltage; MI: Mimic current)
7. Auxi function code(T: With connector; Y: Water proof, oil proof; I: Special requirement;
H: High temp resistance; R: Ring type)

Technical Parameters:

OVERALL DIMENSIONS

DETECTION DISTANCE                            5mm
Flush DC 10-30V NPN NO LM18-3005NA
NC LM18-3005NB
NO+NC LM18-3005NC
PNP NO LM18-3005PA
NC LM18-3005PB
NO+NC LM18-3005PC
two wire system NO LM18-3005LA
NC LM18-3005LB
AC 90-250V SCR Control-lable silicon NO LM18-2005A
NC LM18-2005B
NO+NC
Relay output
DETECTION DISTANCE                            8mm
Non-Flush DC 10-30V NPN NO LM18-3008NA
NC LM18-3008NB
NO+NC LM18-3008NC
PNP NO LM18-3008PA
NC LM18-3008PB
NO+NC LM18-3008PC
two wire system NO LM18-3008LA
NC LM18-3008LB
AC 90-250V SCR Control-lable silicon NO LM18-2008A
NC LM18-2008B
NO+NC
Relay output
Controloutput DC 200mA
SCR/ Relay 300mA
Output voltagc dropDC/AC NPN/PNP<3V,Two wire<3.9V,AC<10V
Consumption current DC<15mA,AC<10mA
Standard detected object 18*18*1(A3 iron)
Repeated precision 0.02
DC/AC 200Hz/25Hz
Working environment temperature -25℃~+70℃
Insulation resistance 50MΩ
Shell material Metal
Protection grade IP67
Altemative model at home and abroad LJ18A3-8-
