LRS-50-24 | 50W Switching Power Supply | Sieno Switchgears

✅ Product Overview

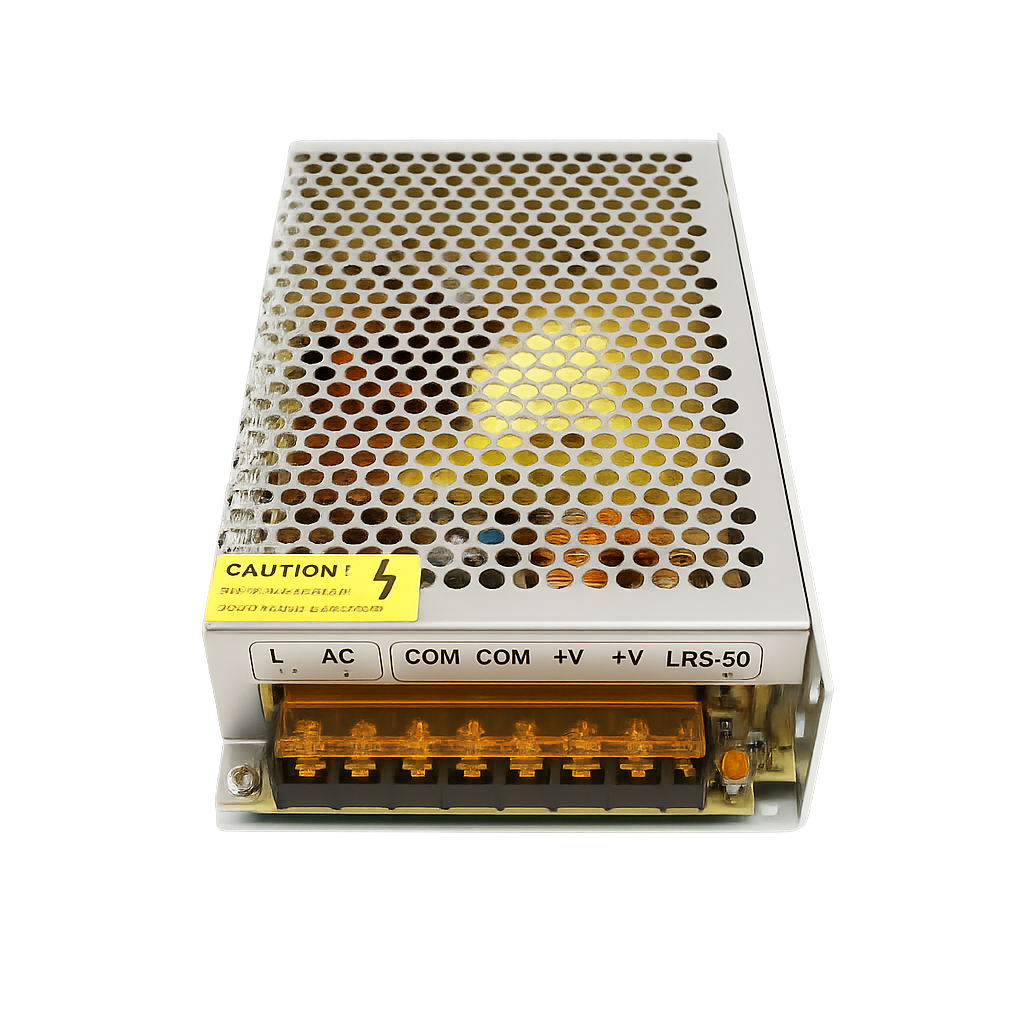

The LRS-50-24 is a single output, 50W switching power supply designed for compact, fanless applications where space, reliability, and energy efficiency are key.
Delivering 24V DC at 2.2A, it is ideal for use in LED lighting systems, industrial automation panels, control boxes, and OEM integration projects.

Housed in a slim 99x82x30mm metal enclosure, the LRS-50-12 ensures excellent heat dissipation while operating with high efficiency up to 88%,
supporting global AC input standards (85~264VAC). Built-in protections and international certifications (CE, UL, RoHS)
make it a safe, dependable power choice for demanding environments.

✅

• Universal AC input: 85~264VAC / 120~370VDC
• 24V DC output @ 2.2A (52.8W max)
• High efficiency: up to 89%
• Compact form factor: 99 x 82 x 30 mm
• Ripple & noise: 150mVp-p
• Low no-load power consumption: <0.5W
• Overload / Over Voltage / Short Circuit protection
• Cooling by natural air convection (fanless)
• CE, UL, RoHS certified | IEC 62368-1 compliant

✅Technical Specifications

✅Typical Applications

• LED lighting and signage
• Industrial control systems
• Embedded systems and OEM integrations
• Security and monitoring equipment
• Access control panels and intercoms
• Test equipment and instrumentation

✅ Related Products

• LRS-50-12 – 12V version
• LRS-50-48 – 48V version
• LRS-35-24 – 35W model with 24V output
• LPV-60-24 – IP67 waterproof 24V 60W supply

✅FAQs

Q1: Is the LRS-50-24 suitable for outdoor use?
A: Only when used inside a waterproof enclosure. For outdoor installations, choose IP67-rated models.

Q2: Can it power 24V LED strips or devices?
A: Absolutely. Its 24V regulated output and 2.2A current make it ideal for many 24V DC applications.
