Sieno S series moulded case circuit breaker

Sieno S series moulded case circuit breaker
S series moulded case circuit breaker is suitable for circuit AC 50Hz/60Hz, rated voltage up to AC 660V, Rated operating current to 800A.
It is supplied with rated insulating voltage 550 and 800V and used for circuit of AC 50/60Hz, rated operating voltage AC 400V (or below)
rated operating current up to 1600A for infrequent changing over and starting of the motors.The products conforms to IEC60947-2 standard.
Product description: Sieno S series moulded case circuit breaker， S series moulded case circuit breaker is suitable for circuit AC 50Hz/60Hz, rated voltage up to AC 660V, Rated operating current to 800A. It features no
INQUIRY

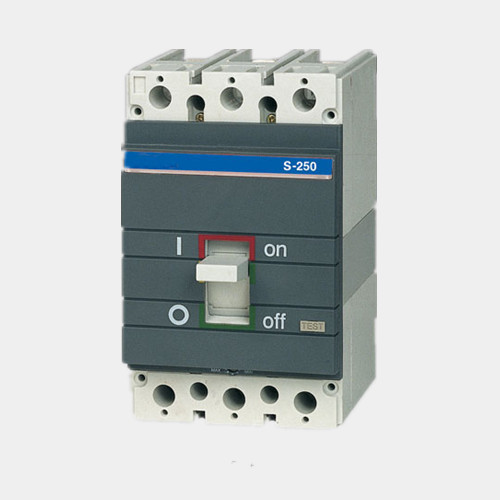

Sieno S series moulded case circuit breaker

Application：
S series moulded case circuit breaker is suitable for circuit AC 50Hz/60Hz, rated voltage up to AC 660V, Rated operating current to 800A.
It features normal structure, reliable performance, complete accessories & high breaking capacity, used for power distribution and protecting the circuit and electrical equipment against overload and short circuit. It complies with standard of IEC60947-2.
Tripping Characteristics

Rated current of release (A)	Thermodynamic release (ambient temp+40℃)		Operational current of magnetic release (A)
Rated current of release (A)	1.05In (cold state) inoperative time (h)	1.30In (heat state) inoperative time (h)	Operational current of magnetic release (A)
In≤63	≥1	< 1	10In±10%
63 < In≤100	≥2	< 2	10In±20%
100 < In≤630	≥2	< 2	5-10In±20%

5-10In±20%	Thermodynamic release (ambient temp+40℃)				Operational current of magnetic release (A)
5-10In±20%	1.0In (cold state) inoperative time	1.20In (heat state) operative time	1.50In (heat state) operative time	7.2In (heat state) operative time	Operational current of magnetic release (A)
12.5≤In≤400	≥ 2h	< 2h	≤4min	2S	12In±20%

Specifications

Type	Rated Current(A)	Number of Poles	Rated Insulation Voltage (V)	Rated Operating Voltage (V)	Ultimate Short Circuit Breaking Capacity(KA)			Servies Short Circuit Breaking Capacity (KA)		operation performance (Endurance)		Overall Dimensions
					AC380v(400)	AC660v (690)	DC250	AC380v (400)	AC660v (690)	Load	Unload	L	W (3P/4P)	H
S-125E	12.5,16, 20,25,32, 40,50,63, 80,100,125	2P, 3P, 4P	660	380 660	15	-	-	7.5	-	3000	7000	120	76/101	70 70
S-125S					25	-	20	16	-
S-160S	16,20,32, 40,50,63, 80,100,125, 160				35	8	20	18	-	4000	6000	120	90/120	103.5
S-160H					50	10	40	25	-
S-250S	100,125,160, 180,200,225, 250				35	10	40	18	-	2000	6000	170	105/140	103.5
S-250M					50	16	40	30	-
S-250H					65	18	40	48	-
S-400S	200,225,250, 315,350,400				35	16	40	18	-	1000	4000	254	140/184	103.5
S-400M					50	20	40	30	-
S-400H					65	25	40	48	-
S-630S	400, 500, 630				50	20	40	30	-	1000	4000	268	210/280	103.5
S-630M					65	25	40	48	-
S-630H					80	30	40	60	-
