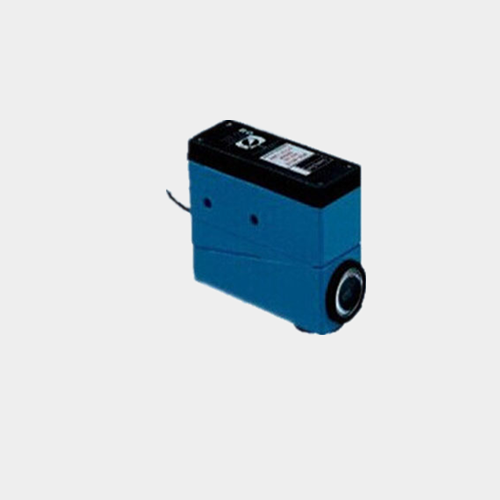

SIENO SMALLER SIZE COLOR SENSORS (BZJ-411G-P)

BZJ-411  Color Sensors (BZJ-411G-N)

Model and meaning:

For example:BZJ – 2 1 1 G- N

BZJ: Color Sensors

2 Design program: 1, 2…
1 Class to light path: 1. Coaxial, 2. Non coaxial
1 Class to light source: 1. Single light source, 2. Double light source
R Color of light source: R: White G: Green
N Class to logic: N- NPN, P-PNP

Sieno Smaller Size Color Sensors (BZJ-411G-P) applies the light emitting and the receiving principle. It will send out modulating light, receive the reflecting lights from detected object, and distinguish the color or recognize the existence of objects according the intensity of the receiving signals. It can serve for sensor in the automaticcontrol systems for packing machiney, printing machinery, texture and paper making machinery ect and be used with other instruments to detect the existence of the object marked with color code, pattern code, line or others. It has the functions of self-locating, recognizing colors, rectifying deviation, pattern checking and countering. The sensor applies optical technique, semi-conductor electronic technique and modulation demodulation, and has the features of high sensitivity, quick response speed, strong anti-background interference, compact structure and convenient operation.


Technical Data:


Technical  Parameter:
Model BZJ-211 BZJ-311 BZJ-411 BZJ-511
Size(mm) 85*57*28 38*62*100 23*40*56 23*40*56
Supply  voltage 10-30vdc 10-30vdc 10-30vdc 10-30vdc
Ambient  temperature 0-50  C 0-50  C 0-50  C 0-50  C
Detecting  method Coaxial  reflection Coaxial  reflection Coaxial  reflection Coaxial  reflection
Sensing  distance 9mm
Chromatogram  of  ligh Red, green  , blue, white Red, green  , blue, white Red, green  , blue, white Red, green  , blue, white
Facula circular circular circular circular
Response  time 50us 50us 200us/500us 200us/500us
Output  current < 200mA < 200mA < 200mA < 200mA
Output  type NPN NPN, PNP, Analog  Output NPN NPN
Shell  material Metal Metal Metal Metal
Cable  length 2m 2m 2m 2m
Protection RP-power  protection,   Load  short  -  circuit  protection
Weight 450g 500g 200g 180g
