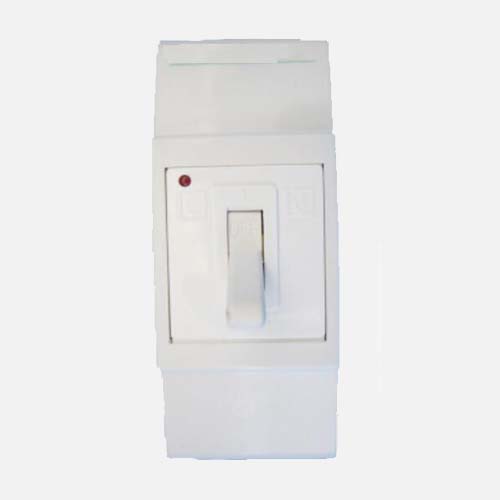

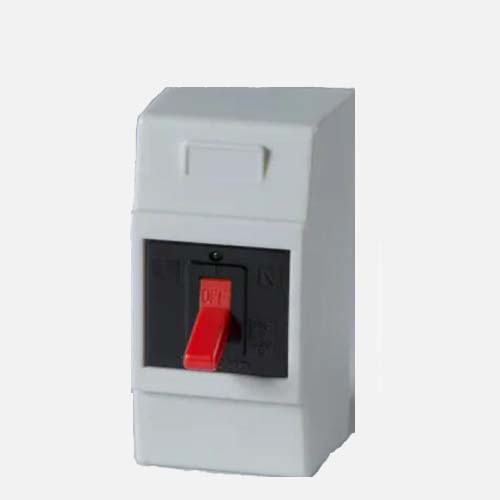

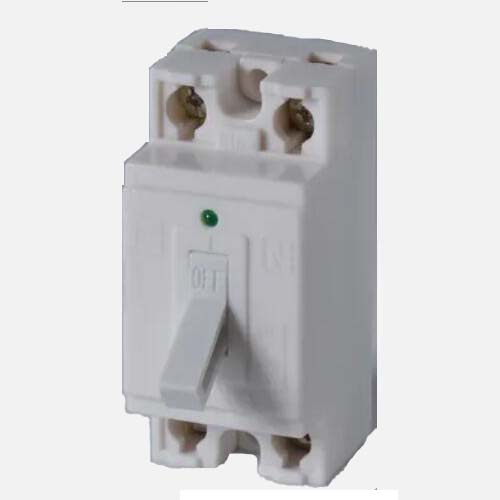

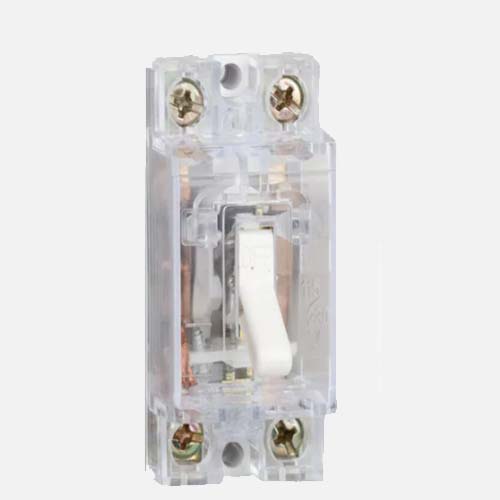

Sieno NT50 Mini Circuit breaker MCB

  • Product description: Sieno NT50 Mini Circuit breaker MCB is used in lighting distribution system ormotor distribution system for protecting overload and short-circuitin the system. The product is novel in structur
  • INQUIRY

Sieno NT50 Mini Circuit breaker MCB


Sieno NT50 Circuit breaker Switchgear

NT50 MCBs/circuit breakers/breakers series is suitable for AC 50Hz, rated voltage up to 240V, rated current up to 32A, it is used for protection of the overload and short circuit of all kings of modern family applicable apparatus. It can also used for unfrequent operation and control.

Main technique parameters:
1. Frame lever Rated current Inm (A): 32
2. POLE: 2P1E/2P2E
3. Rated voltage Un (V): 115/230
4. Rated frequency (Hz): 50, 60
5. Rated current In (A): 6, 10, 16, 20, 25, 30
6. Rated breaking capacity Im(A): 115V/2500, 230/2000
7. Rated limit short-circuit current Inc (A): 3000
8. Rated residual actuating current IΔ N (MA): 30, 15, 10
9. Rated residual non-actuating current IΔ N (MA): 15, 7.5, 5

TECHNICAL:
Conform: IEC60898
Pole NO.(P) 2
Rated Current (A) 5,10,15,20,25,30
Rated Voltage: 115/230V AC
Breaking Capacity: 1.5KA
Degree of Protection: IP 20
Electric Life(times) 6000
Mechanical Life(times) 4000
colour: Black, White
Connection Capacity: 1-6mm rigid conductor
Mounting: *Surface mounting
*Base screw
Din rail base upon request



2. Specification
