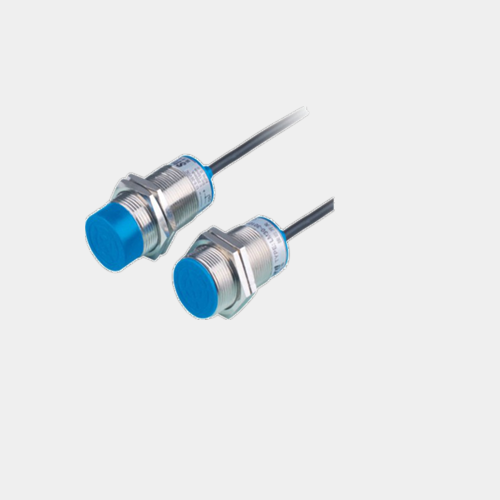

Sieno LM30 Proximity Sensors

Sieno LM30 Proximity Sensors
Product description: Sieno LM30 Proximity Sensors
INQUIRY

Sieno LM30 Proximity Sensors

Compact volume
high precision of repeated location
Diversified exterior structures
Good performance of anti-interference.
Many output forms
High on-off frequency.
Wide voltage range
Dust proof,vibration proof,water proof and oil proof.
With short-circuit protection and inverted connecting protection.
Long service life

Model Explanation

LM30	Detection Distance				10mm
	Flush	DC 6-36VDC	NPN	NO	LM30-3010NA
				NC	LM30-3010NB
				NO+NC	LM30-3010NC
			PNP	NO	LM30-3010PA
				NC	LM30-3010PB
				NO+NC	LM30-3010PC
			Two wire system	NO	LM30-3010LA
				NC	LM30-3010LB
		AC90-250VAC	SCR Control-lable silicon	NO	LM30-2010A
				NC	LM30-2010B
				NO+NC	LM30-2010C
			Relay output		LM30-2010JC
	Detection Distance				15mm
	Non-Flush	DC 6-36VDC	NPN	NO	LM30-3015NA
				NC	LM30-3015NB
				NO+NC	LM30-3015NC
			PNP	NO	LM30-3015PA
				NC	LM30-3015PB
				NO+NC	LM30-3015PC
			Two wire system	NO	LM30-3015LA
				NC	LM30-3015LB
		AC90-250VAC	SCR Control-lable silicon	NO	LM30-2015A
				NC	LM30-2015B
				NO+NC	LM30-2015C
			Relay output		LM30-2015JC
	Control output	DC	200mA
		SCR/Relay	300mA/1A
	Output vol;tage drop DC/AC		DC (NPN PNP) type 3V or less,Two wire 3.9Vor less, AC 10Vor less DC
	Consumption current		DC (NPN PNP) type 12V 8mA,24V 15mA , AC 10mA or less DC
	standard detected object		30301 (A3 iron)
	Repeated precision		0.05
	DC/AC		200Hz/25Hz
	Working environment temperature		-25ºC ~ + 75 ºC
	Insulation resistance		50MΩ
	Shell material		Metal
	Protection grade		IP67
