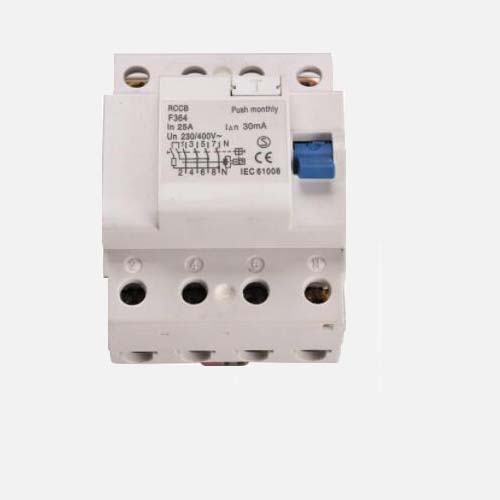

Sieno F364 Residual current circuit breaker RCCBs

Residual Current Circuit Breaker provide the function of isolation switching and earth leakage protection of electrical circuits.And also provide the indirect protection of the operator's body against the dangerous effects of electric current and provide the protection of the fire caused by the electrical circuit fault.

Standard: IEC61008
Advantage
Construction Features:
* Measuring component and buckling component of products is located between enter line end and entrance line end ;
* Movement characteristic of products can not be changed with outside mechanical tool ;
* The operating organization has the free function to take off and buckle;
* Operate part can not be taken down from the shell outer of products , the shell can not influence the operating organization to
work , the accessory group which replace the feelers pressure, should guarantee the feelers pressure does not change while running.
Normal operation and mounting requirement
* Circumstance temperature -5°C ~ +40°C, average temperature within 24h not exceeding +35°C.
* Altitude above sea level less than 2000 m.
* Humidity not exceeding 50% at 40°C and not exceeding 90% at 25°C.
* Installation class II or III.
* Pollution class 2.
* Installation method DIN Rail mounting type.
* The external magnetism shall not be more than 5 times of terrestrial one.
* Product shall be installed at the place where there shall be no severe impact and vibration.
* Product shall be vertically mounted onto standard Din rail 35mm.

Poles Number:2
Rated current:1A-63A
Product name:Residual Current Circuit Breaker RCCB
Breaking capacity:10KA
Rated frequency:50/60 Hz
Certificate:CE/ISO9001
Standard:IEC60898
Material:High Standard Plastic Silver Copper
Rated voltage:230/400V
Mechanical Life:20000 Operations
4p 63a 30ma f362 f364 circuit breaker price

Rated current	1A-63A
Breaking capacity	10KA
Rated frequency	50/60 Hz
Certificate	CE/ISO9001
Standard	IEC60898
Material	High Standard Plastic Silver Copper
Rated voltage	230/400V
Mechanical Life	20000 Operations

Our products have the guarantee period of 36 calendar months,that is a high quality and reliabilityOur products have an excellent ratio between price and quality ,you can possess them by competitive price and high qualityThe fast and flexible production form aim at the customer requireThe deliveries exactly in accordance with customer ordersThe fast transportationAdopt electromagnetic style release , can play a leak electricity and electric shock protecting role while breaking in zero Line.
