Modified Sine Wave Power Inverter

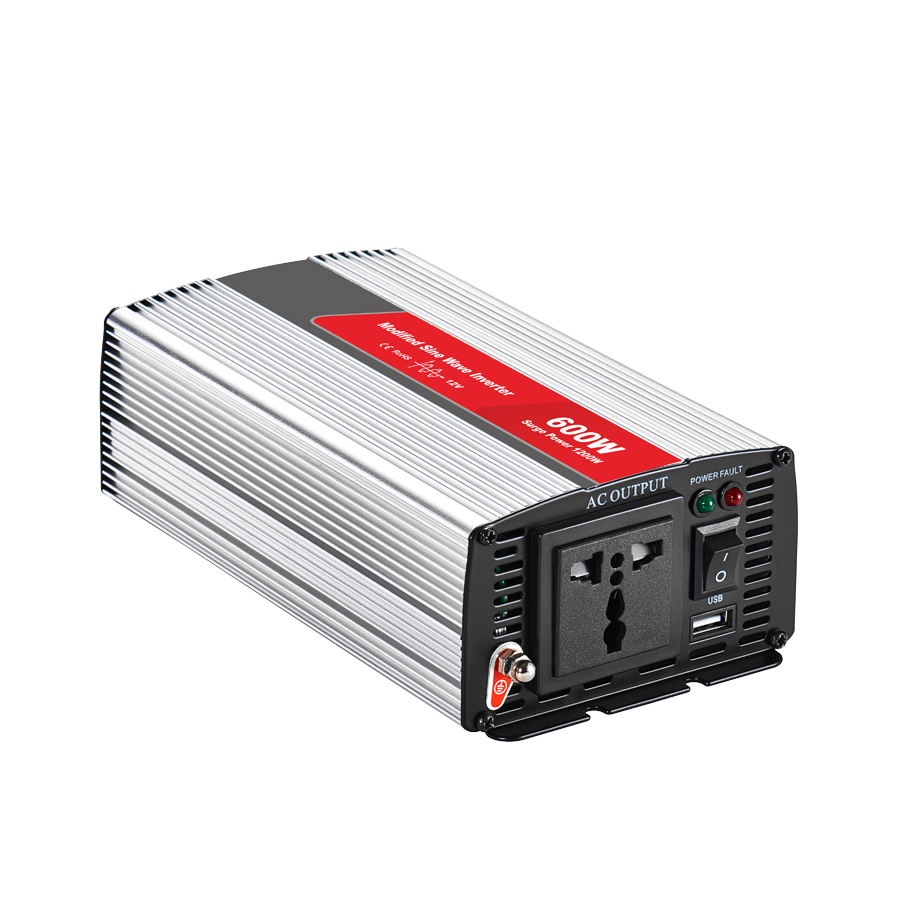

Sieno 600W 12V 24V 48V Dc to Ac 110v 220v Modified Sine Wave Power Inverter

Product description: Sieno 600W 12V 24V 48V Dc to Ac 110v 220v Modified Sine Wave Power Inverter
INQUIRY

Model	M-600-1	M-600-1	M-600-1	M-600-2	M-600-2	M-600-2
Rated power	600W
Peak power	1200W
Input voltage	DC12V	DC24V	DC48V	DC12V	DC24V	DC48V
Output voltage	100VAC or 110VAC or 120VAC±5%			220VAC or 230VAC or 240VAC±5%
Unload current less than	0.3A	0.1A	0.1A	0.3A	0.1A	0.1A
Output frequency	50Hz±0.5Hz or 60Hz±0.5Hz
Output waveform	Modified Sine Wave
USB port	5V 1A
Max.efficiency	90%
Input voltage range	10-15.5V	20-31V	40-61V	10-15.5V	20-31V	40-61V
Low voltage alarm	10.5±0.5V	21±0.5V	42±1V	10.5±0.5V	21±0.5V	42±1V
Low voltage protection	10±0.5V	20±0.5V	40±15V	10±0.5V	20±0.5V	40±15V
Over voltage protection	15.5±0.5V	31±0.5V	61±1V	15.5±0.5V	31±0.5V	61±1V
Low voltage recover	12.3±0.5V	24±0.5V	48±1V	12.3±0.5V	24±0.5V	48±1V
Over voltage recover	14.8V±0.5V	29.5V±0.5V	59V±1V	14.8V±0.5V	29.5V±0.5V	59V±1V
Protection function	Low voltage		Alarm at first, voltage continously reduce. LED Red light on & shut sown.
	Over voltage		LED Red light on, shut down
	Over load		LED Red light on, shut down
	Over temperature		Alarm at first, tempurature continously rise.LED Red light on & shut sown
	Short circuit		LED Red light on
	Input reverse polarity		Fuse burn-out
Working temperature	-10°- +50°
Storage temperature	-30°- +70°
Dimension(mm)	225x112x67mm
Packing(mm)	280x170x105mm
Net./gross weight(g)	1000/1350g
QTY/Ctn	20Pcs
Meas./Ctn(mm)	630x535x335mm
Gross weight/Ctn(g)	27000g
Warranty	1 years
Configuration	Standard
Cooling method	Intelligent air cooling
