Distribution Boxes

  • SIENO WATERPROOF POWER CABINET
  • SIENO WATERPROOF POWER CABINET
  • SIENO WATERPROOF POWER CABINET
  • SIENO WATERPROOF POWER CABINET
SIENO WATERPROOF POWER CABINET SIENO WATERPROOF POWER CABINET SIENO WATERPROOF POWER CABINET SIENO WATERPROOF POWER CABINET

SIENO WATERPROOF POWER CABINET

  • Made from a continues length of sheet double folded at the front, with back welded to the frame
  • Protection degree:IP66
  • Impact resistance:IK10
  • Enclosure of all-round solid construction
  • Product description: SIENO WATERPROOF POWER CABINET
  • INQUIRY

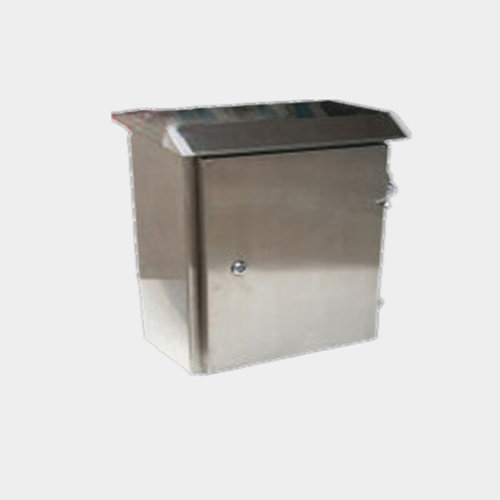

SIENO WATERPROOF POWER CABINET

Designed to enclose electrical and or electronic equipment and protect against harsh, industrial environments.

For use as instrument enclosures, electric hydraulic or pneumatic control housings, electrical junction boxes or terminal wiring enclosures.
Impressive styling features make the enclosure a suitable addition to any high-tech equipment installation
For high temperature applications, a gasket retainer may be required, please refer to factory

High Quality distribution box,IP66 metal electrical boxes Specifications:

Sieno Distribution Metal Boxes made from a continues length of sheet double folded at the front, with back welded to the frame. Both externally and internally protected with polyester epoxy resin Grey paint to RAL7032 or RAL7035 texturized.

Material:
Sieno Distribution Metal Boxes made from a continues length of sheet double folded at the front, with back welded to the frame. Both externally and internally protected with polyester epoxy resin Grey paint to RAL7032 or RAL7035 texturized.

Surface finish:
Enclosure and door:Dipcoat-primed,powder-coated in textured Ral7032 or Ral7035 outside
Mounting plate : Galvanized steel or sheet steel to paint in RAL2004/RAL7032

Protection:
Protection degree:IP66
Impact resistance:IK10

Supply includes:
Enclosure of all-round solid construction
gland plate with sealing gasket,door with lock.

Warranty Service:
We 100% Guarantee your Satisfaction
1 Please report us if there are any problem, we will solve it ASAP.
2 This items comes with 1 YEAR warranty.
Equivalent replacements can be provided with shipment of your next order if the products are broken for unartificial factors within 1 YEAR; however photos are needed for us to find the factors of damaging them.
3 Shipping and handling fees are not refundable for return or exchange items.

SIENO WATERPROOF POWER CABINET

Model H W D thickness
mm mm mm Door/mm Body/mm M.P/mm
SN2215 200 200 150 1.2 1.2 2
SN2515 250 200 150 1.2 1.2 2
SN2315 300 200 150 1.2 1.2 2
SN2320 300 200 200 1.2 1.2 2
SN25320 300 250 200 1.2 1.2 2
SN3315 300 300 150 1.2 1.2 2
SN3320 300 300 200 1.2 1.2 2
SN3325 300 300 250 1.2 1.2 2
SN3415 400 300 150 1.2 1.2 2
SN3420 400 300 200 1.2 1.2 2
SN3425 400 300 250 1.2 1.2 2
SN4415 400 400 150 1.2 1.2 2
SN4420 400 400 200 1.2 1.2 2
SN4425 400 400 250 1.2 1.2 2
SN3515 500 300 150 1.2 1.2 2
SN3520 500 300 200 1.2 1.2 2
SN3530 500 300 300 1.2 1.2 2
SN4515 500 400 150 1.2 1.2 2
SN4520 500 400 200 1.2 1.2 2
SN4525 500 400 250 1.2 1.2 2
SN4530 500 400 300 1.2 1.2 2
SN5515 500 500 150 1.2 1.2 2
SN5520 500 500 200 1.2 1.2 2
SN5525 500 500 250 1.2 1.2 2
SN4615 600 400 150 1.2 1.2 2
SN4620 600 400 200 1.2 1.2 2
SN4625 600 400 250 1.2 1.2 2
SN4630 600 400 300 1.2 1.2 2
SN5615 600 500 150 1.2 1.2 2
SN5620 600 500 200 1.2 1.2 2
SN5625 600 500 250 1.2 1.2 2
SN5630 600 500 300 1.2 1.2 2
SN6615 600 600 150 1.2 1.2 2
SN6620 600 600 200 1.2 1.2 2
SN6625 600 600 250 1.2 1.2 2
SN4720 700 400 200 1.2 1.2 2
SN4730 700 400 300 1.2 1.2 2
SN5715 700 500 150 1.2 1.2 2
SN5720 700 500 200 1.2 1.2 2
SN5725 700 500 250 1.2 1.2 2
SN6720 700 600 200 1.2 1.2 2
SN6725 700 600 250 1.2 1.2 2
SN6820 800 600 200 1.5 1.5 2
SN6825 800 600 250 1.5 1.5 2
SN6830 800 600 300 1.5 1.5 2
SN8820 800 800 200 1.5 1.5 2
SN8825 800 800 250 1.5 1.5 2
SN8830 800 800 300 1.5 1.5 2
SN6 1020 1000 600 200 1.5 1.5 2
SN6 1025 1000 600 250 1.5 1.5 2
SN6 1030 1000 600 300 1.5 1.5 2
SN8 1020 1000 800 200 1.5 1.5 2
SN8 1025 1000 800 250 1.5 1.5 2
SN8 1030 1000 800 300 1.5 1.5 2
SN8 1040 1000 800 400 1.5 1.5 2
SN101025 1000 1000 250 1.5 1.5 2
SN101030 1000 1000 300 1.5 1.5 2
SN6 1220 1200 600 200 1.5 1.5 2
SN6 1225 1200 600 250 1.5 1.5 2
SN6 1230 1200 600 300 1.5 1.5 2
SN8 1220 1200 800 200 1.5 1.5 2
SN8 1225 1200 800 250 1.5 1.5 2
SN8 1230 1200 800 300 1.5 1.5 2
SN101225 1200 1000 250 1.5 1.5 2
SN10 230 1200 1000 300 1.5 1.5 2
SN101240 1200 1000 400 1.5 1.5 2
SN121225 1200 1200 250 1.5 1.5 2
SN121230 1200 1200 300 1.5 1.5 2
SN6 1430 1400 600 300 1.5 1.5 2
SN8 1430 1400 800 300 1.5 1.5 2
SN101430 1400 1000 300 1.5 1.5 2
SN101440 1400 1000 400 1.5 1.5 2
SN121430 1400 1200 300 1.5 1.5 2
